What is a Ring and Pinion Gear?

The ring and pinion gear set is a crucial component in a vehicle’s differential system, responsible for transferring power from the driveshaft to the wheels. Achieving a good ring and pinion pattern is essential for ensuring optimal performance, efficiency, and longevity of your vehicle’s drivetrain.
The ring and pinion gear set consists of two gears – the ring gear, which is mounted on the differential carrier, and the pinion gear, which is connected to the driveshaft. These gears work together to transfer power from the engine to the wheels, allowing the vehicle to move.

Importance of a Good Ring and Pinion Pattern

ring and pinion gear
A good ring and pinion pattern is crucial for several reasons. First, it ensures that the gears mesh smoothly, reducing wear and tear on the components. Second, it helps distribute the load evenly across the gear teeth, preventing premature failure. Finally, a good ring and pinion pattern helps maintain proper gear mesh, which is essential for efficient power transfer.
Achieving a good ring and pinion pattern requires proper installation and adjustment. Here are the key steps:
Ensure that the ring and pinion gears are installed correctly, with the proper gear mesh and backlash.
Check the gear tooth contact pattern to ensure that it is uniform across the gear teeth.
Adjust the gear mesh as needed to achieve the desired pattern.
Properly adjust the backlash to ensure smooth gear operation.
Some common signs of a bad ring and pinion pattern include whining or grinding noises from the differential, uneven tire wear, and poor acceleration or fuel efficiency.

How to Read Ring and Pinion Gear Patterns?

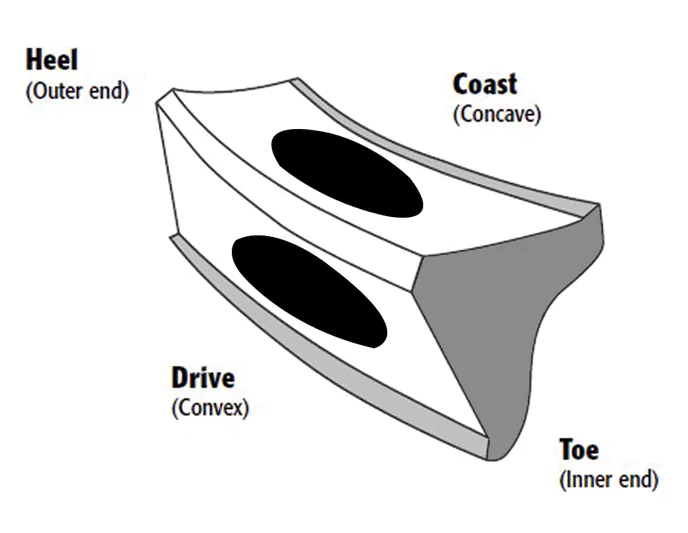

Perfect Ring & Pinion Gear pattern
This is an example of the perfect pattern that we would all love to see but rarely get. In such cases, you will achieve a pattern that is centered face-to-flank but runs at the outer edge of the heel or athe inner edge of the toe.

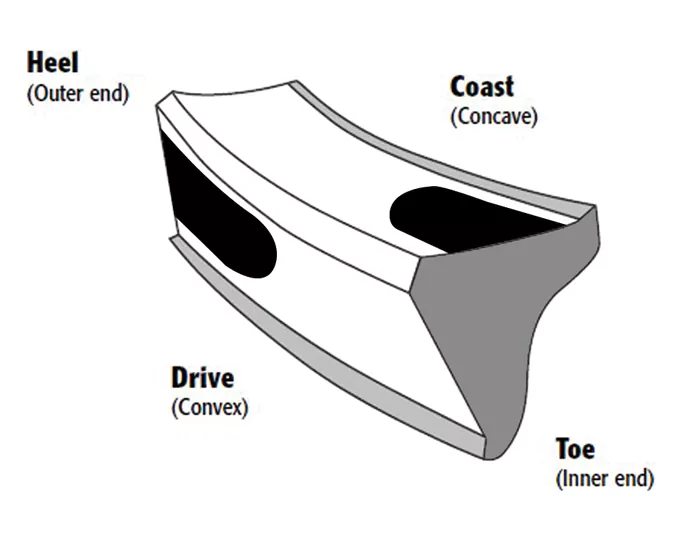

acceptable Ring & Pinion Gear pattern
This is an acceptable pattern. lt will run quiet andstrong for years. Attempting to adjust this type of pattern in an effort to center it heel-to-toe will ad-versely affect the face-to-fank.and will probablyend up producing a noisy differential.
This pattern is too close, The pinion should be moved away from the ring gear.
Ring & Pinion Gear pattern(1)
This pattern is too far away. The pinion needs to be moved closer to the ring gear.
Gear pattern is crucial. A bad one leads to noise and early wear. Spending extra time to set it up right pays off with a smooth, quiet, and long-lasting drivetrain.
